The Big Picture

Why This Lesson Matters

Claude Code is not a simple chatbot wrapper. It's a full-stack agent runtime that runs in your terminal. Before you can build your own agents, you need a mental model of how the whole thing fits together.

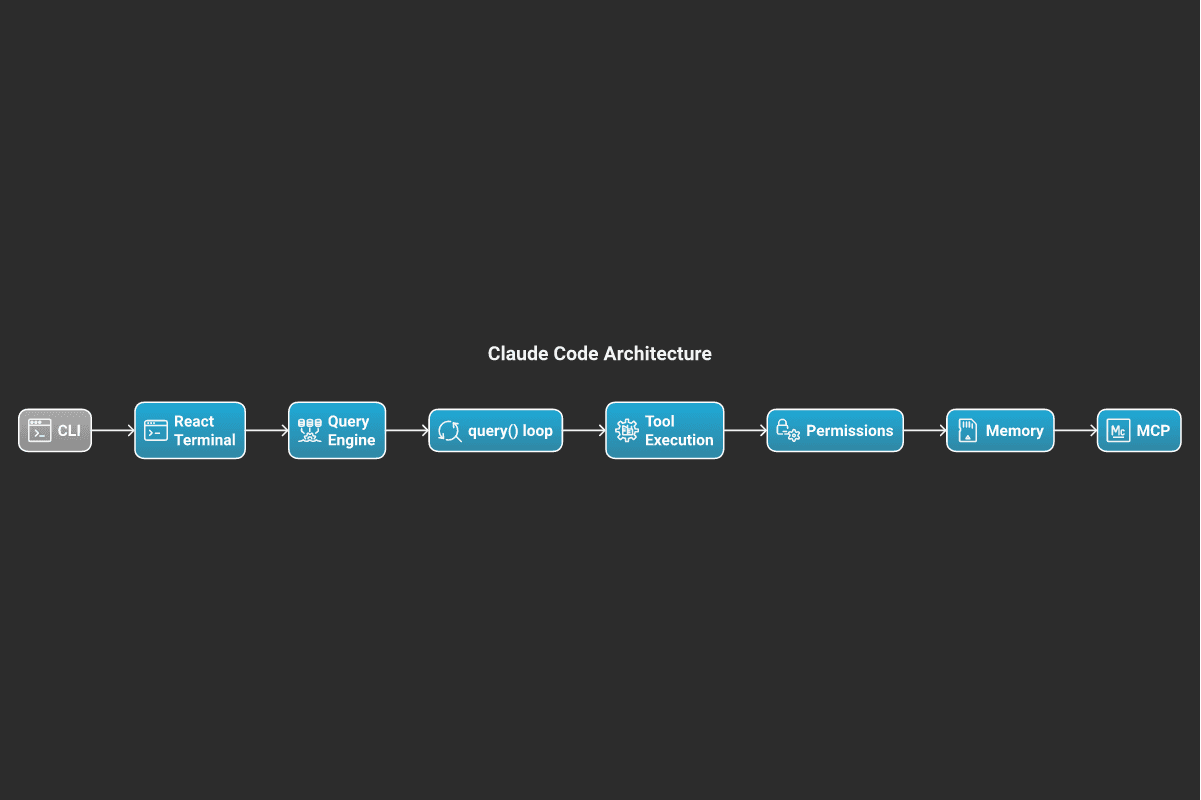

This lesson gives you that map — the 8 layers, the entry points, and how data flows from your keypress to an API call and back to rendered text in your terminal.

Think of it like learning a city's subway map before you start navigating it. You don't need to know every station. You just need to know the main lines.

Layer 1: The CLI Entry Point

Everything starts at cli.py. When you run claude, this is the first file executed. It does three things:

1. Detects the execution mode — are we in interactive REPL mode, one-shot -p mode, or bridge/IDE mode?
2. Handles immediate exits — version flags (--version, -v, -V) exit before anything else starts.
3. Delegates — it calls into main.py with a structured config object.

The key insight: the CLI layer is intentionally thin. It's just a router. No business logic lives here.

import sys
from dataclasses import dataclass
from enum import Enum

class ExecutionMode(Enum):
    INTERACTIVE = "interactive"   # default REPL
    ONE_SHOT = "one_shot"         # claude -p "message"
    BRIDGE = "bridge"             # IDE extension mode

@dataclass
class CLIConfig:
    mode: ExecutionMode
    initial_prompt: str | None = None
    verbose: bool = False

def parse_cli(args: list[str]) -> CLIConfig:
    # Handle immediate exits first — no app startup needed
    if len(args) == 1 and args[0] in ("--version", "-v", "-V"):
        print("claude 2.1.88")
        sys.exit(0)

    if "-p" in args:
        idx = args.index("-p")
        prompt = args[idx + 1] if idx + 1 < len(args) else None
        return CLIConfig(mode=ExecutionMode.ONE_SHOT, initial_prompt=prompt)

    if "--bridge" in args:
        return CLIConfig(mode=ExecutionMode.BRIDGE)

    # Default: interactive REPL
    return CLIConfig(mode=ExecutionMode.INTERACTIVE)

# Entry point — thin router, no business logic
if __name__ == "__main__":
    config = parse_cli(sys.argv[1:])
    start_app(config)  # delegate everything else

Layer 2: React in the Terminal

This is one of Claude Code's most surprising architectural choices. The entire UI is built with React — but rendered to a terminal, not a DOM.

The source at src/ink/ is a fully custom terminal renderer. It's not the third-party "Ink" library. It includes:

• A custom React reconciler (so React's useState, useEffect, etc. all work)
• Integration with Yoga layout engine (flexbox in your terminal!)
• A screen buffer that diffs and redraws only changed cells

Why React? Possible reason (speculation): The team likely wanted to manage complex, dynamic UI state — streaming text, tool progress indicators, multiple concurrent operations — without building a bespoke state machine. React's declarative model maps well to "what should the screen look like given this state."

from dataclasses import dataclass, field
from typing import Callable

# A "component" is just a function that returns renderable content
Component = Callable[["State"], str]

@dataclass
class State:
    messages: list[str] = field(default_factory=list)
    is_streaming: bool = False
    current_tool: str | None = None

@dataclass
class ScreenBuffer:
    """Diffs output to avoid full redraws."""
    _last_lines: list[str] = field(default_factory=list)

    def render(self, component: Component, state: State) -> None:
        new_output = component(state).splitlines()

        # Only redraw lines that changed (diff)
        for i, line in enumerate(new_output):
            if i >= len(self._last_lines) or self._last_lines[i] != line:
                print(f"\033[{i+1};0H{line}")  # move cursor + print

        self._last_lines = new_output

def chat_ui(state: State) -> str:
    """A simple terminal 'component'."""
    lines = ["─── Claude Code ───"]
    for msg in state.messages:
        lines.append(f"  {msg}")
    if state.is_streaming:
        lines.append("  ● streaming...")
    if state.current_tool:
        lines.append(f"  ⚙ running: {state.current_tool}")
    return "\n".join(lines)

Layer 3: The Query Engine

query_engine.py is the conversation manager. It holds the message history for a session and serializes concurrent user actions into a single queue.

Its central method is submitMessage() which: 1. Adds the user message to the history 2. Notifies the UI (React re-renders the optimistic state) 3. Calls into query() — the actual API layer

The QueryEngine is also where skill discovery happens. When Claude responds with tool calls to skills it has learned, the engine tracks them to avoid unbounded growth in the discovered-skills set.

import asyncio
from dataclasses import dataclass, field
from typing import AsyncIterator

@dataclass
class Message:
    role: str  # "user" | "assistant" | "tool_result"
    content: str

@dataclass
class QueryEngine:
    history: list[Message] = field(default_factory=list)
    _queue: asyncio.Queue = field(default_factory=asyncio.Queue)
    _discovered_skills: set[str] = field(default_factory=set)

    async def submit_message(self, text: str) -> AsyncIterator[str]:
        """Add message and stream the response."""
        user_msg = Message(role="user", content=text)
        self.history.append(user_msg)

        # query() is the actual streaming API call
        async for chunk in self._query():
            yield chunk

    async def _query(self) -> AsyncIterator[str]:
        """Streaming API call — simplified."""
        # In reality this calls Anthropic's streaming API
        # and handles tool calls in a sub-loop
        response = await call_api(self.history)
        async for token in response.stream():
            yield token

    def track_skill(self, skill_name: str) -> None:
        """Cap discovered skills to avoid unbounded growth."""
        MAX_SKILLS = 50
        if len(self._discovered_skills) < MAX_SKILLS:
            self._discovered_skills.add(skill_name)

Layer 4: The Tool System

Every capability Claude has beyond text generation — reading files, running bash, searching the web — is a Tool. Each tool implements a strict interface:

• name — what Claude calls it in its output
• description — the system prompt text that teaches Claude when to use it
• inputSchema — JSON Schema validating the tool's arguments
• call() — the actual implementation that runs

Tools are assembled into a pool via assembleToolPool(). The pool is sorted before being sent to the API. This matters for caching: identical tool lists produce identical cache keys, so minor reordering doesn't bust the prompt cache.

Lesson 02 covers the tool system in depth. For now, just know: tools are how Claude acts in the world.

from abc import ABC, abstractmethod
from typing import Any
import jsonschema

class Tool(ABC):
    """Every agent capability implements this interface."""

    @property
    @abstractmethod
    def name(self) -> str:
        """The tool name Claude uses in its output."""
        ...

    @property
    @abstractmethod
    def description(self) -> str:
        """Injected into the system prompt — teaches Claude when to call this."""
        ...

    @property
    @abstractmethod
    def input_schema(self) -> dict:
        """JSON Schema for the tool's arguments."""
        ...

    @abstractmethod
    async def call(self, args: dict) -> str:
        """Execute the tool and return a string result."""
        ...

    def validate(self, args: dict) -> None:
        jsonschema.validate(args, self.input_schema)


class ReadFileTool(Tool):
    name = "read_file"
    description = "Read the contents of a file at a given path."
    input_schema = {
        "type": "object",
        "properties": {
            "path": {"type": "string", "description": "Absolute file path"}
        },
        "required": ["path"],
    }

    async def call(self, args: dict) -> str:
        self.validate(args)
        with open(args["path"]) as f:
            return f.read()


def assemble_tool_pool(tools: list[Tool]) -> list[Tool]:
    """Sort tools by name for stable cache keys."""
    return sorted(tools, key=lambda t: t.name)

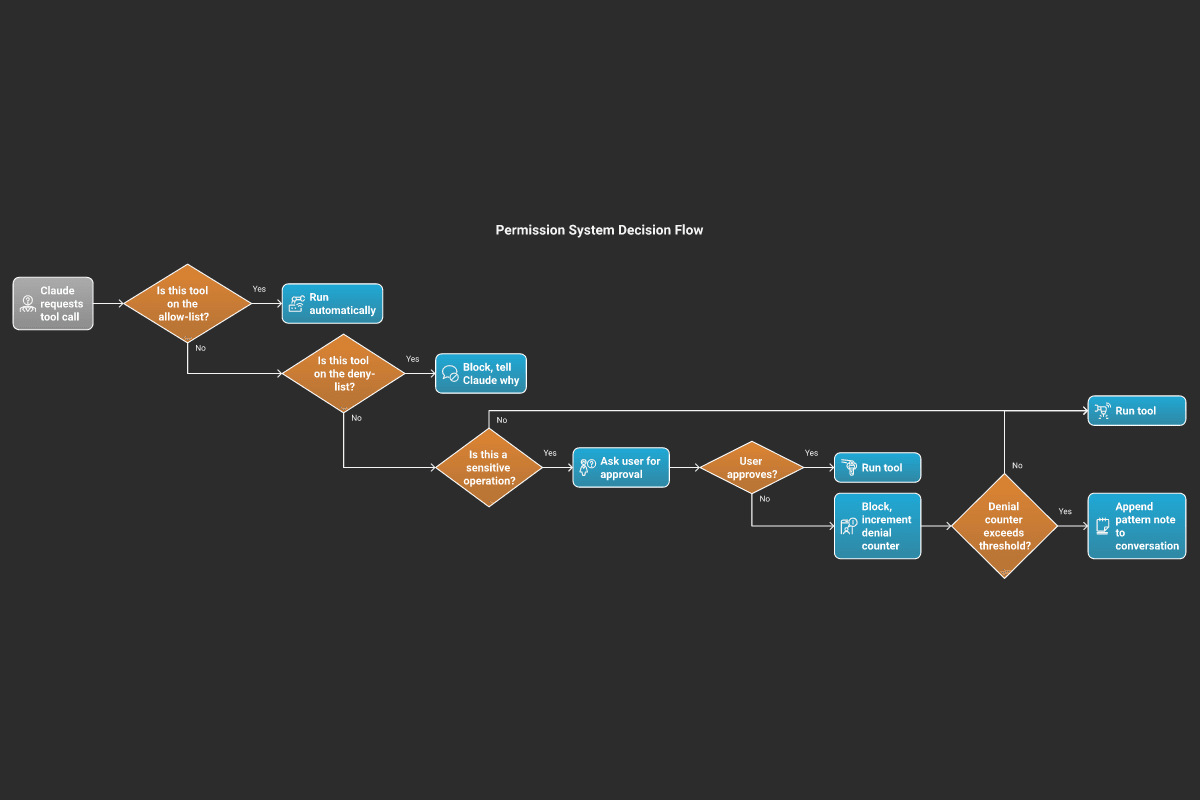

Layer 5: The Permission System

Not all tool calls are created equal. Deleting a file needs different treatment than reading one. Claude Code's permission system sits between "Claude wants to call a tool" and "the tool actually runs."

Three possible outcomes for any tool call: - Allow — proceed automatically (read-only ops, user pre-approved) - Ask — pause and prompt the user for approval - Deny — block and tell Claude why

The system tracks denial counts. After a threshold, repeated denials are noted in the conversation so Claude can understand the pattern and stop trying.

YOLO mode (--dangerously-skip-permissions) bypasses this entirely. The name is intentional.

Layer 6: Memory & Context

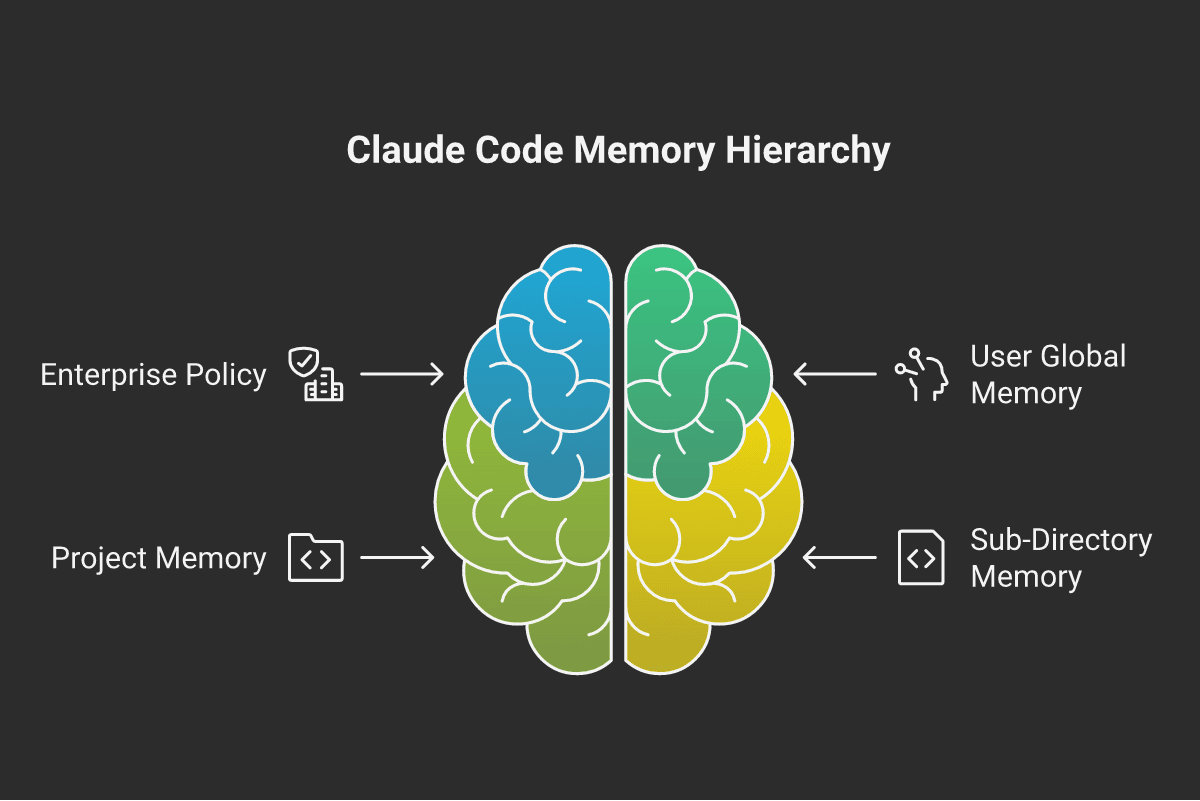

Claude Code has a layered memory system built on a directory hierarchy:

1. Enterprise policy — /Library/Application Support/.claude/
2. User global memory — ~/.claude/CLAUDE.md
3. Project memory — ./CLAUDE.md (and ./CLAUDE.local.md for gitignored local overrides)
4. Sub-directory memory — src/CLAUDE.md, tests/CLAUDE.md, etc.

All applicable files are loaded and concatenated into the system prompt before each conversation turn.

Context compaction is how Claude Code handles long sessions without hitting token limits. When the context window approaches capacity, Claude Code automatically triggers a compaction:

1. A secondary Claude call is made with the full conversation history.
2. That call produces a concise summary of what happened.
3. The raw history is replaced with the summary — freeing thousands of tokens.
4. The session continues as normal with the new compressed context.

This is why you sometimes see a "compacting conversation..." message mid-session. The model doesn't lose track of the task — it gets a summary that preserves intent, decisions, and file state. You can also trigger it manually with the /compact command.

Layers 7–8: MCP & Plugins

The final two layers extend the system outward.

MCP (Model Context Protocol) connects Claude Code to external servers that expose tools, resources, and prompts over a standard protocol. You can add MCP servers to your config and they appear as additional tools in Claude's pool. Connections happen over stdio or HTTP/SSE transports.

Plugins are a lighter extensibility mechanism. Skills (like /commit, /review-pr) are loaded from markdown files. Custom commands can be added to .claude/commands/. These extend what Claude can do without the full MCP protocol.

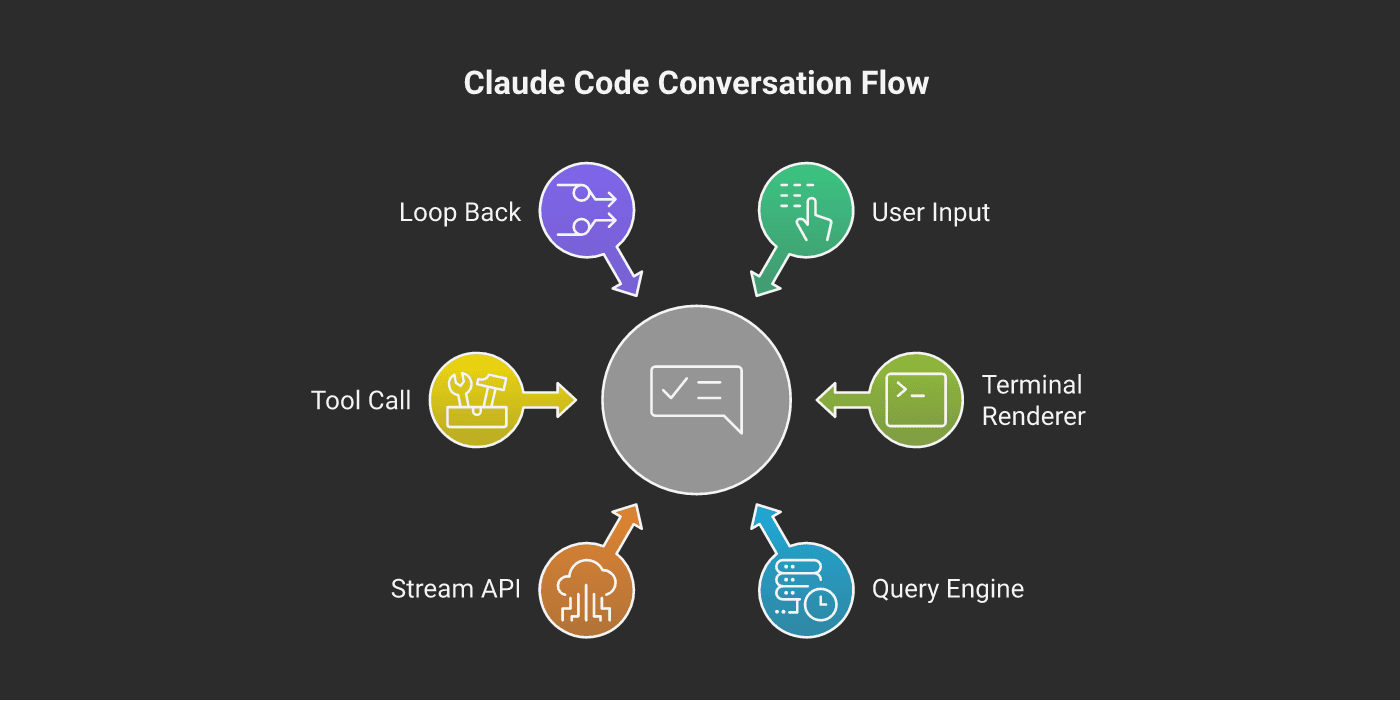

Putting It All Together: One Conversation Turn

Here's the complete flow when you type a message and press Enter:

1. Terminal keypress captured by the renderer (Ink + React)
2. React state update — QueryEngine.submit_message() called
3. Message added to history, optimistic UI updates immediately
4. query() called — opens a streaming connection to the Anthropic API
5. API streams back tokens — each token is rendered to the terminal as it arrives
6. If the API returns tool_use blocks — StreamingToolExecutor intercepts
7. Permission system checks each tool before it actually runs
8. Tool results appended to history — next API call made in the sub-loop
9. Steps 6–8 repeat for every tool call in a single turn
10. Loop ends when the API returns stop_reason: "end_turn"

This is why Claude can read a file, run a command, read another file, and write an edit — all before returning control to you. Each tool call is a sub-loop, not a separate conversation turn.
